Wazer

桌上型水刀切割機

WAZER

WAZER

HK$0.00
HK$0.00
Sale Sold out
Shipping calculated at checkout.
 此款型號為預訂貨品，交貨期約4個星期
如有興趣，請聯絡我們查詢!
電話：26191183

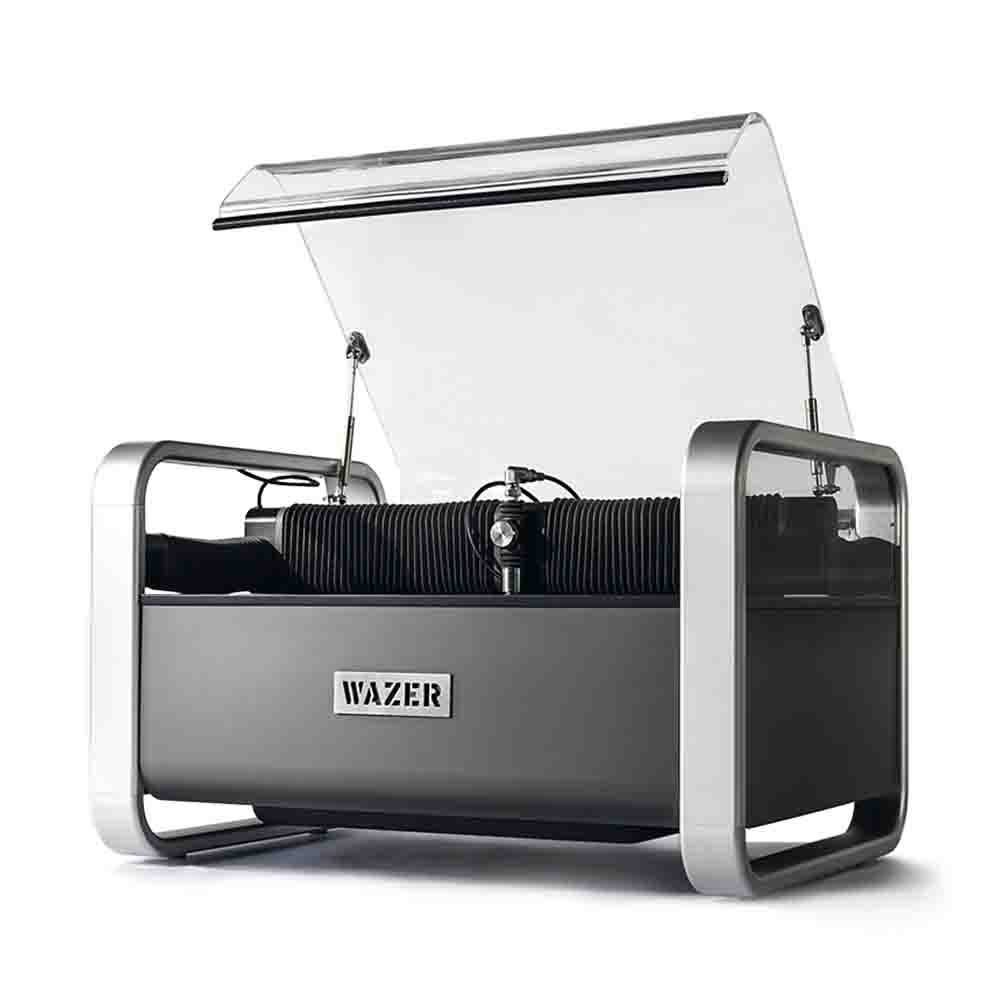

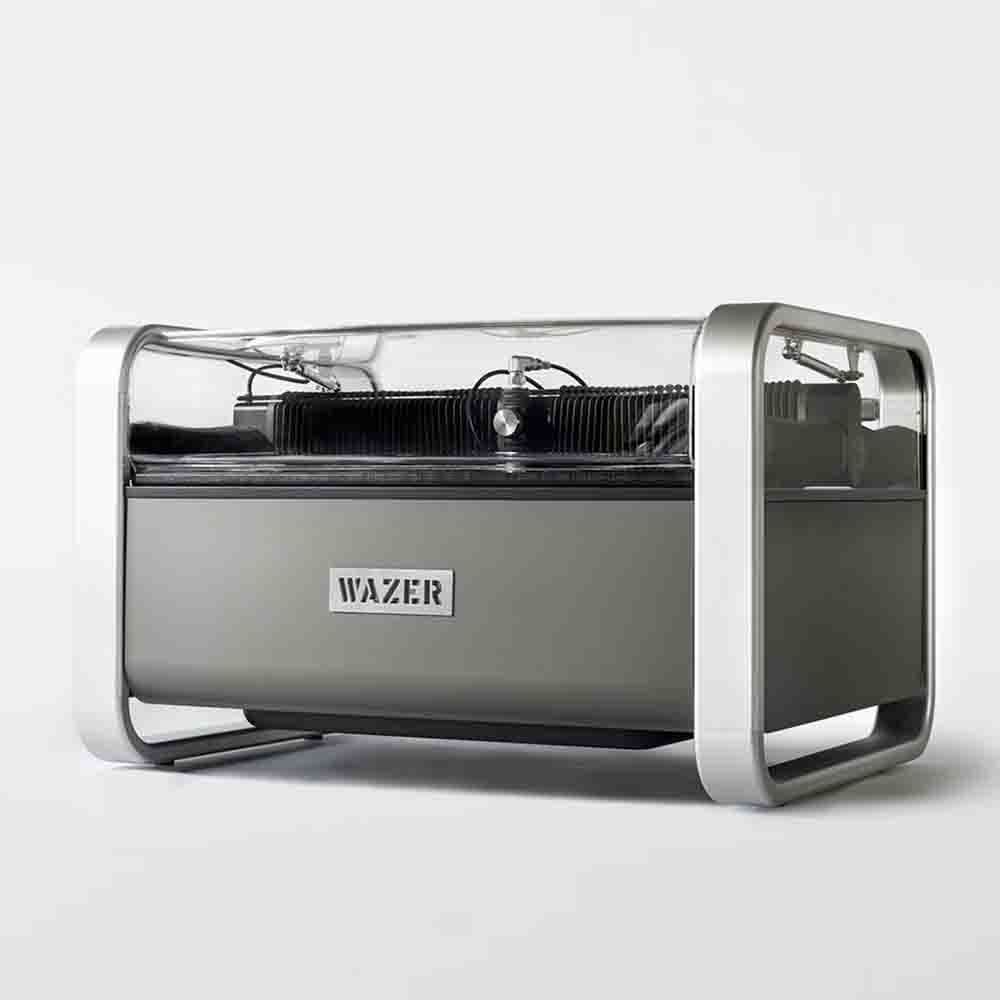

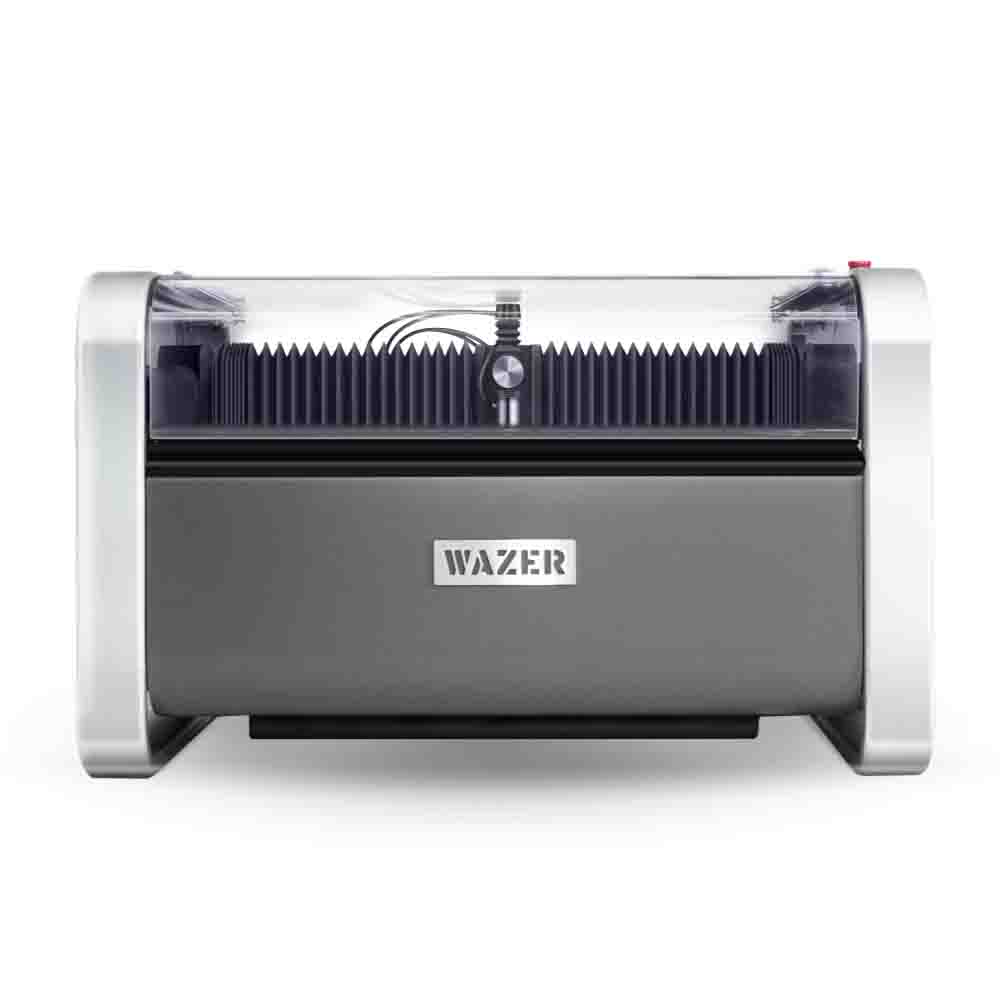

WAZER 為全球首創桌上型水刀。透過數位精準計算，無論是任何材料皆可滿足您的切割需求。原理是以超高壓水射流及石榴砂的組合來切割工件，可以切割金屬、陶瓷、石材、玻璃與複合材質此類堅硬材質。

Shipping / Pre-order Terms

Delivery terms

  • Over HK$1500, free delivery;
  • If the amount is less than HK$1500, an additional local standard delivery fee of HK$150 is required;
  • Or SF Express (pay by freight)

Pre-order terms

  • It will take about 2-4 weeks for the pre-order to arrive. It is for reference only, and the actual situation depends on the shipment and transportation situation.
  • After the pre-ordered goods arrive, we will notify the customer of the arrival for arrange the payment of the final amount. We will arrange the delivery once the payment confirmed.
  • After the payment is confirmed for all reservations, no cancellation or refund application will be accepted.

One year warranty

Starting from the invoice date, a one-year warranty is provided.

⚠️The following are not included in the maintenance service:

3D printer: extruder and clogged nozzles.

UV printing printer: printheads and clogged nozzles.

Inquiry / Quotation

View full details

Features

產品特點

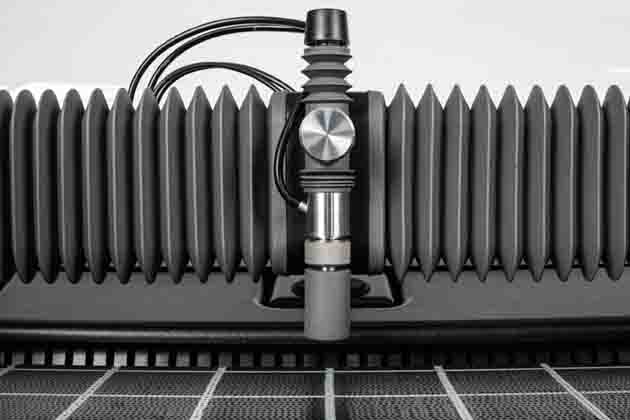

  • 精準切割，輕鬆上手

    俐落地切割任意曲線，讓每一個工作室擁有專業級製造能力。輕鬆上手，接上標準的電力、水源及排水設施即可操作。

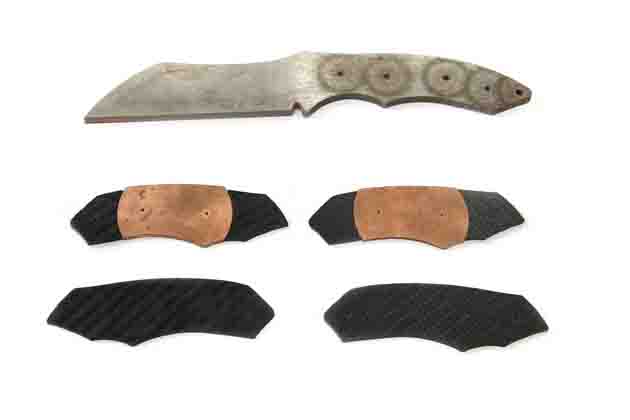

  • 客製化生產，實現你的切割欲望

    客製化打樣生產的最佳選擇，展現水刀的強大效能。切割金屬、玻璃、陶瓷、複合材料、塑膠、橡膠、碳纖維⋯⋯等，滿足你的創作想像，實現你的切割欲望。

  • 從設計到切割，順暢無阻礙

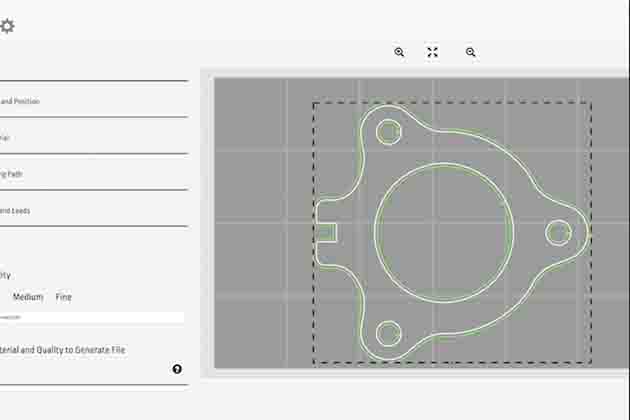

    WAZER 的網頁版設計軟體 WAM ，順暢操作。將您設計檔案載入 WAM，設定完成後即可在幾分鐘內進行切割。

1 3

製作流程

  • 上傳設計

    使用我們的WAM軟體及準備您的水刀切割設計圖。

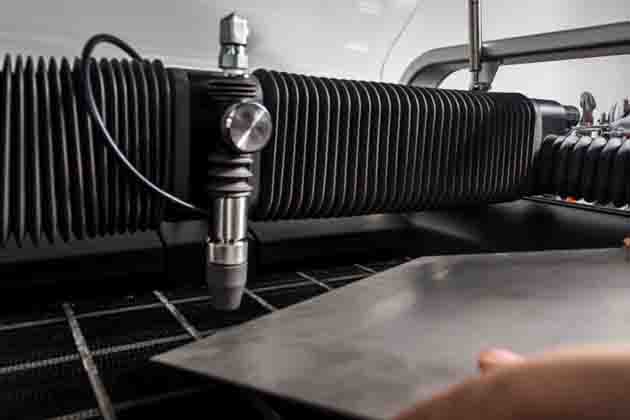

  • 加載材料

    裝入適合水刀機的材料並將其固定到位。

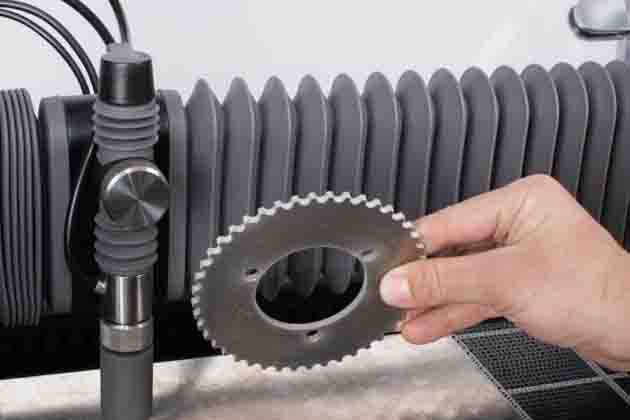

  • 製作切割件

    使用 SD 卡將您的切割檔案傳輸到 WAZER，然後讓水刀從那裡取出它來製作您的切割件。

1 3

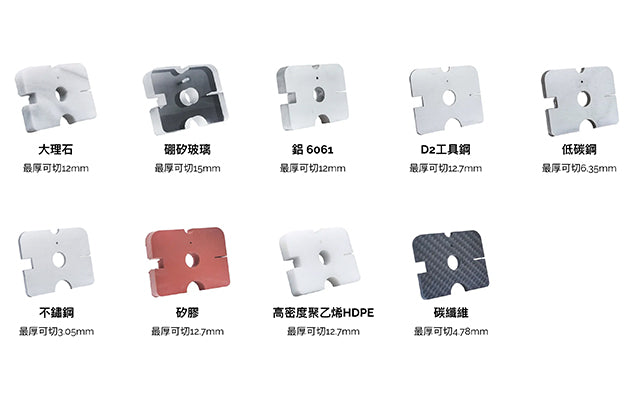

應用物料

  • 物料

    能使用多種物料。

      Technical Specifications

      Technical Specifications

      Size : 34” x 25.5”” x 22” (856mm x 648mm x 551mm)
      Size with Stand Leg Accessory : 34” x 25.5”” x 48” (856mm x 648mm x 1220mm)
      Empty Weight : 110 lbs. (50 kg)
      Loaded Weight : 400 lbs. (180 kg)
      Pump Box Size : 21” x 15” x 11” (533 mm x 355 mm x 280 mm)
      Pump Box Weight : 92 lbs. (42 kg.)
      Cutting Area : 12” x 18” (305 mm x 460 mm)
      Cut Bed Size : 13” x 19” (330 mm x 485 mm)
      Kerf (width of cut) : .044 (1.2 mm)

      Water Source : Filtered tap water
      Input Water Filter : ~300 mesh
      Input water requirement : >1gal(3.8L)/min; > 35Psi(2.4Bar) ; TDS<
      Water Draining : 180mg/L; >130F/54°C
      Draining Hose requirement : (1.9L) /min • <30 feet (9m) length; < 4 feet (1.2m) elevation
      Water Recirculation : Not Recommended
      Abrasive Flow Rate : 40g~150g/min
      Abrasive Capacity : 30lbs (13.5 kg)
      Abrasive Type : Garnet 80 mesh
      Maximum Linear Speed 75 IPM (1905 mm/min)
      Gantry Positional Precision : 0.003” (0.08 mm)
      Main Unit V1.5 (220 VAC) : 220-240 VAC, 50/60Hz, 2.5A
      Pump Box V1.5B VAC : 220-240 VAC; 50Hz; 10A; 2200W
      Browser Compatibility : Chrome, Internet Explorer, Safari, Firefox
      Compatible File Types : .dxf, .svg
      Connectivity : SD Card
      Noise Emission : 74 + / - 3dB
      Noise Pressure Level : 87 + / - 3dB
      Storage Condition : 0°C - 40°C / 32°F-104°F for prolonged storage
      0°C - 70°C / 32°F-160°F for 24 hours
      Maximum Working Pressure & Flow Rate : 4600psi (32Mps) at 0.5 gal/min (1.9L/min)
