Elephant Robotics

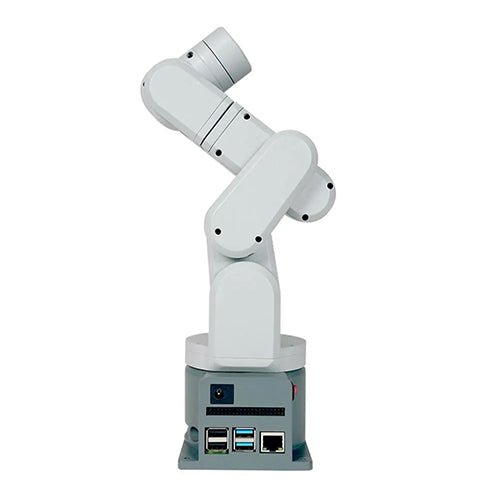

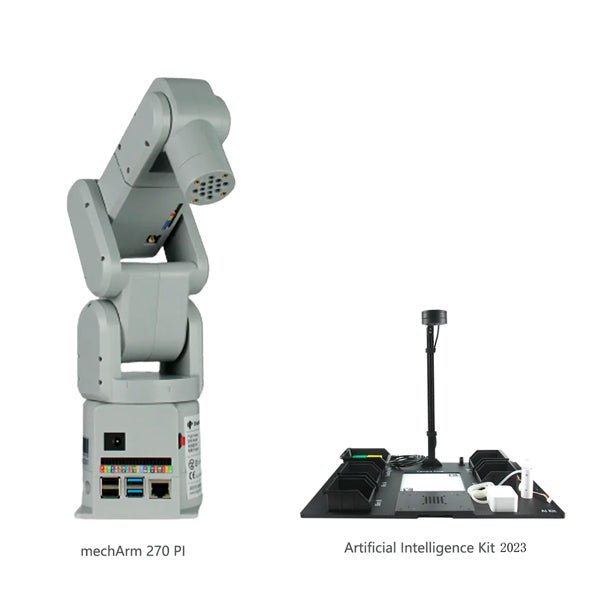

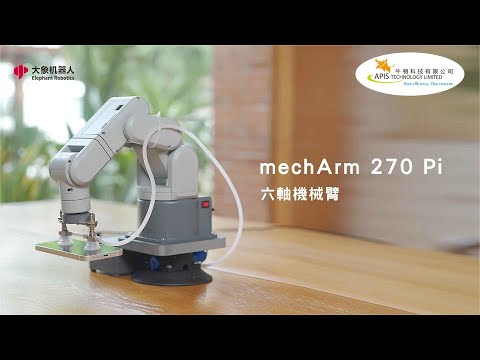

Desktop Small Six-Axis Robotic Arm

MechArm 270 Pi

MechArm 270 Pi

Regular price HK$10,470.00
Regular price Sale price HK$10,470.00
Sale Sold out
Shipping calculated at checkout.
型號

Elephant Robotics Desktop Small 6-Axis Robotic Arm

Model: MechArm 270 Pi

----

The compact and multifunctional small six-axis robotic arm is used for teenagers to learn artificial intelligence programming. It has chess duel, writing and drawing, voice control, visual tracking, laser engraving and other trendy ways to play in the Maker world!

  • Six degrees of freedom of joint movement
  • 270mm radius of motion
  • Repeat positioning accuracy ±0.5mm

Shipping / Pre-order Terms

Delivery terms

  • Over HK$1500, free delivery;
  • If the amount is less than HK$1500, an additional local standard delivery fee of HK$150 is required;
  • Or SF Express (pay by freight)

Pre-order terms

  • It will take about 2-4 weeks for the pre-order to arrive. It is for reference only, and the actual situation depends on the shipment and transportation situation.
  • After the pre-ordered goods arrive, we will notify the customer of the arrival for arrange the payment of the final amount. We will arrange the delivery once the payment confirmed.
  • After the payment is confirmed for all reservations, no cancellation or refund application will be accepted.

One year warranty

Starting from the invoice date, a one-year warranty is provided.

⚠️The following are not included in the maintenance service:

3D printer: extruder and clogged nozzles.

UV printing printer: printheads and clogged nozzles.

Inquiry / Quotation

View full details

Features

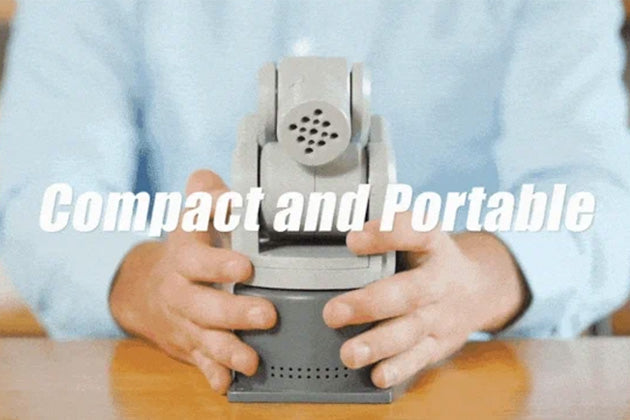

  • 輕巧緊湊機身

    MechArm 270 Pi機械臂機身設計輕巧緊湊,可隨手放進背包,帶上它到任何一個創意發生的角落。

  • 功能多樣化,創造力無限

    MechArm 270 Pi為您的無限創意而打造,把想法變成現實。抓取,移動,下棋,繪畫,語音控制,視覺跟蹤,鐳射雕刻。

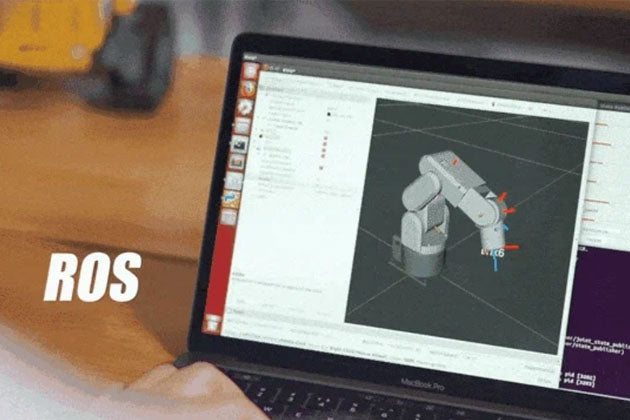

  • ROS仿真控制支持

    採用全球主流機器人通訊框架ROS開發,並且支持仿真,在虛擬環境中進行控制及算法的驗證,降低了對實驗環境的要求,提高了實驗效率。

1 of 3

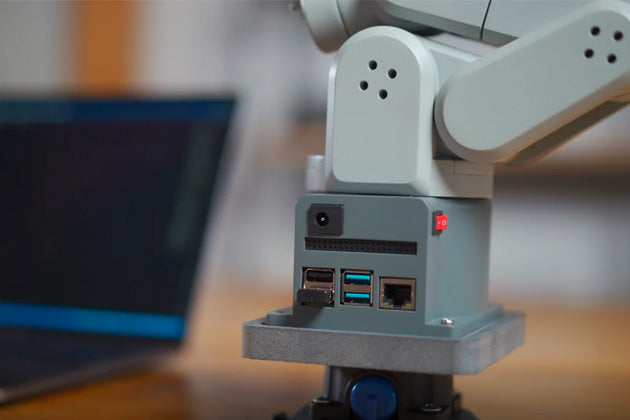

  • 全面開放的軟件控制接口

    依據科研教育等各類應用場景,全面開放控制接口,提供更全面、更具針對性的接口選擇,滿足實現物品分揀、人臉識別、圖像識別等AI場景需求。

        Technical Specifications

        Technical Specifications

        degrees of freedom: 6
        Maximum working radius (mm): 270
        Net weight (g): 1kg
        Maximum load (g): 250g
        Repeat positioning accuracy (mm): +/- 0.5mm


        Power interface INPUT: DC 8.4 – 14V
        Auxiliary control: raspberry pi
        On/Off Button: Yes
        Wireless connection: Bluetooth
        End IO: 5 DIO + 3 PIN

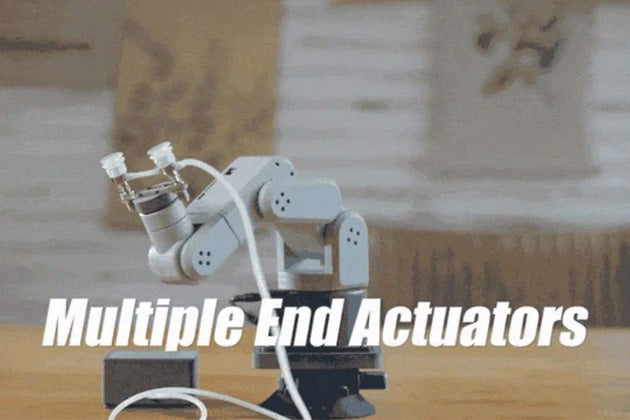

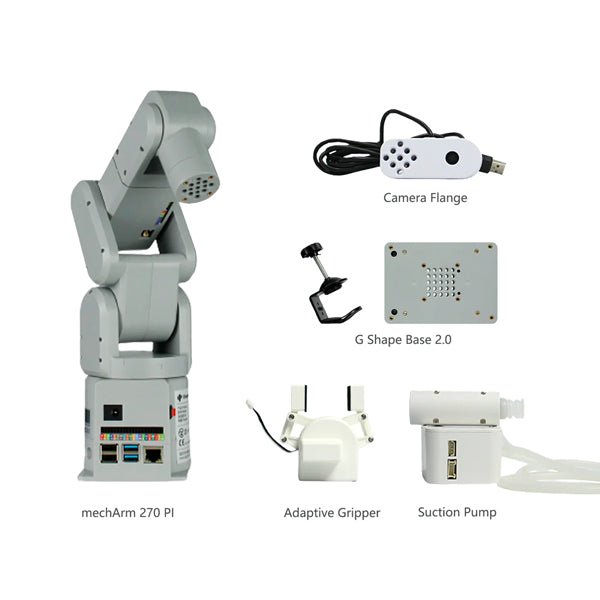

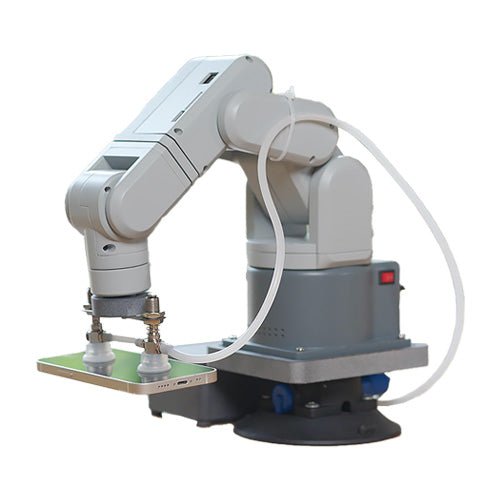

        sucker
        Size: 122*107*15mm
        Diameter: 118mm
        Weight: 410g
        Height: 50mm
        Maximum load (g): 200g

        Jaws
        Size: 88*78*48mm
        Clamping distance: 28mm
        Weight: 90g
        Maximum load (g): 200g

        Mobile phone bracket flange (Foleng)
        Size: 32*50*48mm
        Weight: 10g
        Maximum load (g): 220g

        Cylindrical flange (Foleng)
        Diameter: 40mm
        Weight: 10g
        Height: 45g
