GCC

Flatbed UV printer

JF-2418UV

JF-2418UV

Regular price HK$0.00
Regular price Sale price HK$0.00
Sale Sold out
Shipping calculated at checkout.
This model is a pre-order item
If you are interested, please contact us for enquiry!
Tel: 26191183

CMYK four-color printing|white ink printing|partial varnish

JF-2418UV flatbed UV printer has a convenient and easy-to-use interface and unique functions, including relief printing, high-distance printing and hot stamping. It is a multi-functional device that increases more possibilities for printing.

Shipping / Pre-order Terms

Delivery terms

  • Over HK$1500, free delivery;
  • If the amount is less than HK$1500, an additional local standard delivery fee of HK$150 is required;
  • Or SF Express (pay by freight)

Pre-order terms

  • It will take about 2-4 weeks for the pre-order to arrive. It is for reference only, and the actual situation depends on the shipment and transportation situation.
  • After the pre-ordered goods arrive, we will notify the customer of the arrival for arrange the payment of the final amount. We will arrange the delivery once the payment confirmed.
  • After the payment is confirmed for all reservations, no cancellation or refund application will be accepted.

One year warranty

Starting from the invoice date, a one-year warranty is provided.

⚠️The following are not included in the maintenance service:

3D printer: extruder and clogged nozzles.

UV printing printer: printheads and clogged nozzles.

Inquiry / Quotation

View full details

Features

  • 立體堆疊列印效果

    JF-2418UV是一款方便的工具,任何人都可以創建立體的圖案並為RFID、精品珠寶、油畫複製畫等產品提供附加價值,運用JF-240UV的堆疊列印,不論應用於何種材料上,都能製造出真實的立體觸感。在高解析度的列印模式下,即使是小至2pt的字體,輪廓及線條依然清晰分明,為客戶創造出精美而高價值的產品。

  • 冷燙印刷應用(金、銀箔)

    JF-2418UV採用獨家研發的印刷工藝、LED能源控制和GCC底漆,可以輕鬆地將冷燙技術用於Mifare(RFID)卡、邀請卡、亞克力…等等材質。
    * 冷燙功能僅適用於 JF-2418UV(帶底漆)型號。
    ** 需要使用燙箔機在印刷介質上貼箔。

  • 內建盲人點字列印功能

    搭配GCC獨家研發的盲人點字列印功能,只需要簡單的設定,盲人點字列印即可一步完成,JF-240UV提供使用者盲人點字招牌完美製作的最佳選擇。

1 of 3
  • 白墨方案 (選配)

    JF-240UV提供四種利用白墨的特殊應用:打底、上層塗布、特殊色和彩色-白色-彩色三個圖層同時輸出。白墨解決方案可以讓使用者在透明或者深色的底材上做不同的表現,提供絕佳的輸出品質,滿足標誌、包裝、禮贈品和客製商品等各行業需求。

  • 表面上光解決方案(選配)

    表面上光解決方案就是在印刷品表面覆蓋薄且均勻的透明圖層,再以UV固化乾燥。表面上光可以保護印刷圖案,增加其耐磨性。不同的上光模式提供了不同的視覺效果,除了可高附加值外,更節省了覆膜設備和人力費用。
    表面上光模式包含:
    ・四種上光效果
    ・局部上光

  • 高距離印刷

    允許用戶在具有 10 至 20 度坡度的表面不平整的材料上列印,避免列印頭被壓壞,同時保持列印品質。例如,客製陶瓷板、平板電腦蓋等。
    * 高距離印刷使用不當可能會導致噴墨頭噴嘴因紫外線反射而堵塞。
    ** 列印頭和承印物之間較大的間隙可能會導致處理時列印圖像模糊。

1 of 3

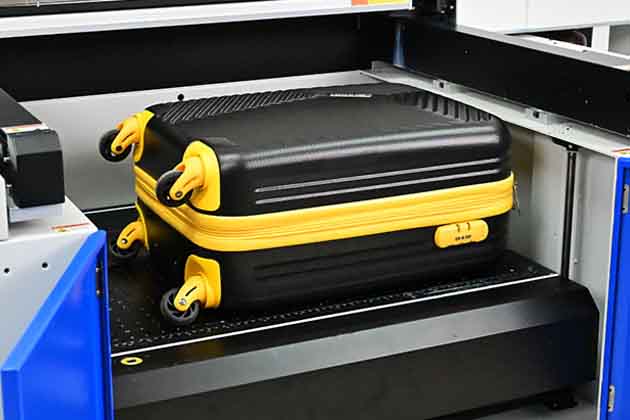

  • 最大深度 30cm直接列印

    接受高達 30cm(11.8 英吋)厚的材料通過,具有超大的承印物容納能力,例如槳、網球拍和曲棍球球棍。

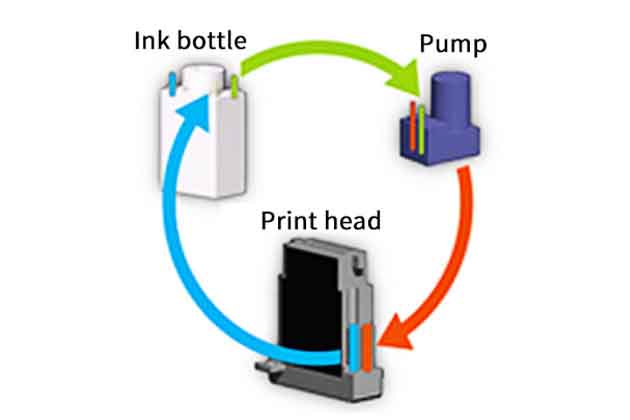

  • 白墨循環系統

    GCC研發的自動化白墨循環系統會定期執行從墨瓶到噴頭的白墨循環,不但可減低白色墨水產生沉澱物質的機率,並可保持白色墨水的列印品質,讓白色列印應用有更穩定的表現。

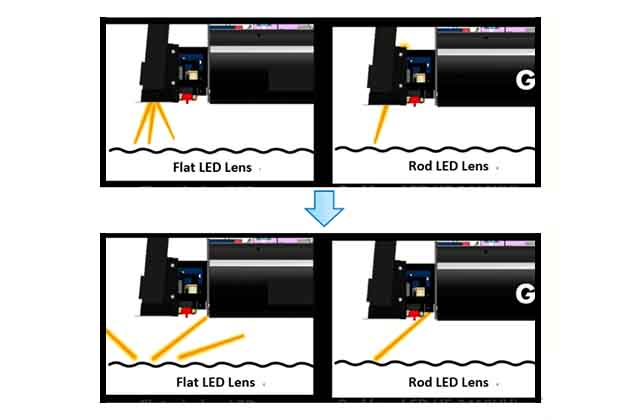

  • Rod LED透鏡

    聚焦的LED燈可以減少散射現象,以降低對噴頭和噴嘴的損害。

1 of 3

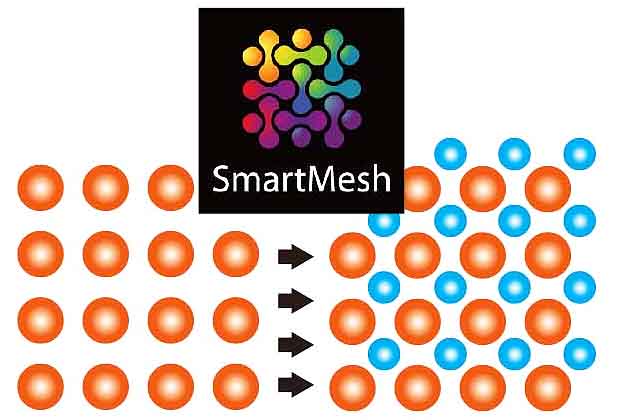

  • SmartMESH™無痕功能

    專門設計的 SmartMESH™ 功能將複雜的算法應用於噴墨圖案控制,創建無與倫比的圖形設計。 先進的 SmartMESH™技術有效解決了印痕問題提高了影像品質。

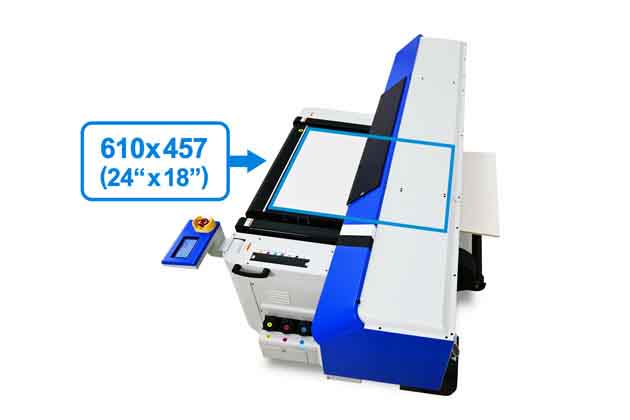

  • 支持 ARCH C 標準材料尺寸

    GCC UV平版印刷機 可以處理 ARCH C (610 x 450 mm / 24”x 18“) 的標準材料,除了按需打印外,還適用於包裝上的數位印刷點綴及標準尺寸的亞克力。

  • 噴頭高度自動調整模組

    當列印平台有障礙物時,噴頭高度自動調整模組可自動降低列印平台至最適合之高度,以避免噴頭與障礙物碰撞而造成損傷。

1 of 3

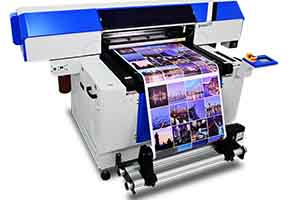

  • 捲材列印系統

    降低停機時間和操作人力,滿足您對於捲材的應用的需求。

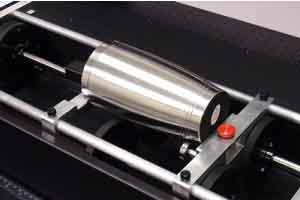

  • 旋轉軸組 - JF-240UV

    GCC創新研發的旋轉軸組,能列印於圓筒狀物,如馬克杯、酒瓶等,只要將待印素材放置於旋轉軸組上,列印時旋轉軸組會自動旋轉列印素材,讓您創作原創商品輕鬆不費力。

1 of 2

Technical Specifications

Technical Specifications

Printing method: supply and demand voltage type inkjet head
Nozzle (ink drop size): Japanese UV special nozzle (automatic ink drop 5 pl to 35 pl)
Maximum printing area (W x L) : 610 x 457 mm (24 x 18 in.)
Dimensions: 610 x 457 x 300 mm (24 x 18 x 11.8 in.)
Weight: 15kg
Print Head Adjustment: AMC™ Auto Focus System
Printing speed (Production). : 3.75 m2/hr
Printing speed (Quality): 2.23 m2/hr
Printing speed (High Density): 1.6 m2/hr
Ink type: UV ink
Ink capacity: 1 liter
Ink Curing Module: Dual UV LED Lamps
Print resolution: 1200 x 600 dpi, 1200 x 1200 dpi
Printing distance: The error is less than ±0.3% of the moving distance or ±0.3mm, whichever is higher
Distance Accuracy (in progress) : Maneuverable
Control Panel: Touch Panel (480 x 272 pixel)
Transmission: Ethernet 1000BASE-T
Operating environment (temperature/humidity) : 22°C -30°C (71.6°F- 86°F) / (40%-60% humidity)
Special Features: Tactile Printing Capabilities, Cold Foil Application, High Gap Printing
Optional items: Rotary shaft/ Coil system/ Deodorizer/ Static removal unit
Dimensions (WxLxH) : 2034(L) x 1160(W) x 1140(H) mm
Package Dimensions (WxLxH) : 2130(L) x 1290(W) x 1450(H) mm (with package)
Net weight: 280kg
Gross weight: 445 kg
