GCC

laser cutting machine

X252

X252

HK$58,900.00
HK$58,900.00
Sale Sold out
Shipping calculated at checkout.
Watts
This model is a pre-order item
If you are interested, please contact us for enquiry!
Tel: 26191183

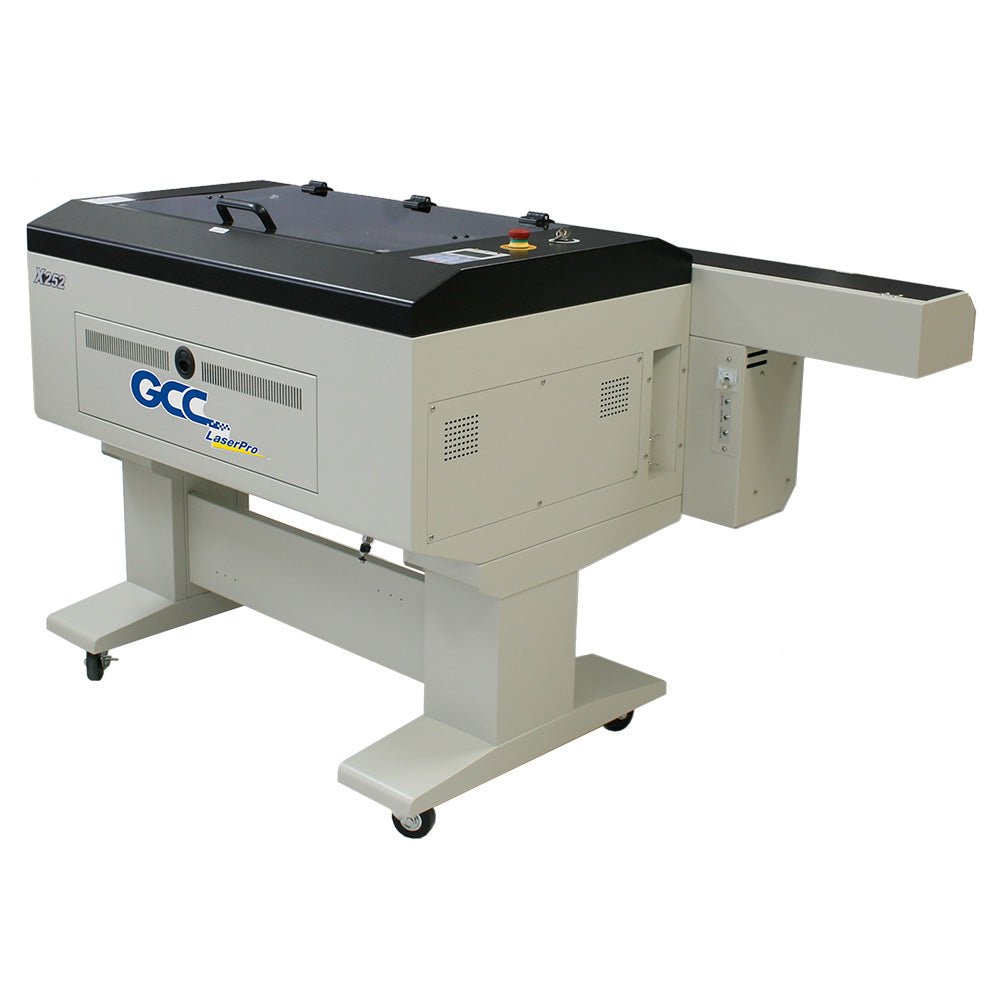

GCC Equipped with a reliable carbon dioxide (CO2) glass tube, the X252 is an affordable choice!


Working area: 635 x 458 mm (25 x 18 in.)
Z-axis depth: 165 mm (6.5 in.)
Wattage: 80W~100W
Maximum cutting speed: 40 IPS


Shipping / Pre-order Terms

Delivery terms

  • Over HK$1500, free delivery;
  • If the amount is less than HK$1500, an additional local standard delivery fee of HK$150 is required;
  • Or SF Express (pay by freight)

Pre-order terms

  • It will take about 2-4 weeks for the pre-order to arrive. It is for reference only, and the actual situation depends on the shipment and transportation situation.
  • After the pre-ordered goods arrive, we will notify the customer of the arrival for arrange the payment of the final amount. We will arrange the delivery once the payment confirmed.
  • After the payment is confirmed for all reservations, no cancellation or refund application will be accepted.

One year warranty

Starting from the invoice date, a one-year warranty is provided.

⚠️The following are not included in the maintenance service:

3D printer: extruder and clogged nozzles.

UV printing printer: printheads and clogged nozzles.

Inquiry / Quotation

View full details

Features

Humanized design, easy to use

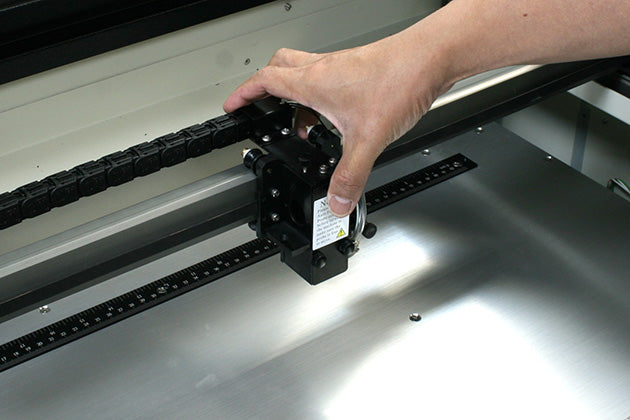

  • Programmable Origin

    Drag and engraver function that is easy to move the machine to the cut or engrave object instead of via control panel. Designed for simplifying complex tasks.

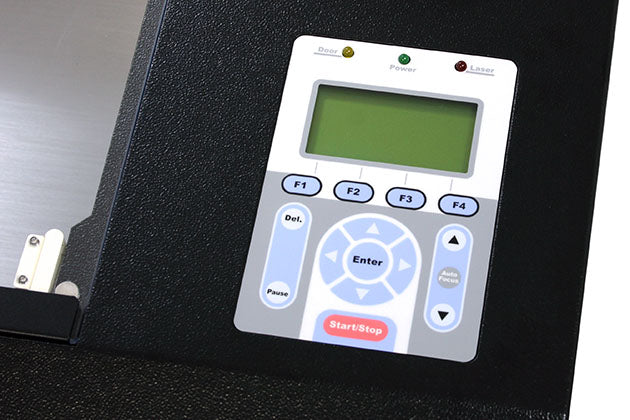

  • Easy-to-use Control Panel

    A control panel with coherent hot-key design and graphic icon displays that allows you to directly change the laser parameter setting, set jobs to repeat unlimited times, queue job, delete jobs, and more.

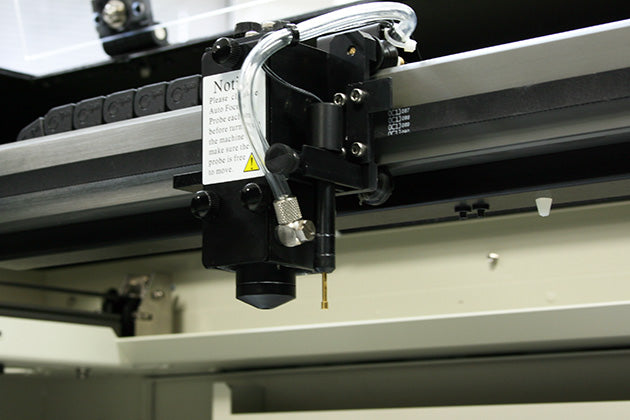

  • AutoFocus (Patented)

    Patented Autofocus Gauge adjusts the laser engraver to the precise focal point on the engraving area automatically. The Autofocus is the most effective lens-focusing tool that prevents human error when exact measurement of distance from the surface of the working material is needed.

1 3

Appearance and function design are fully equipped to meet various needs

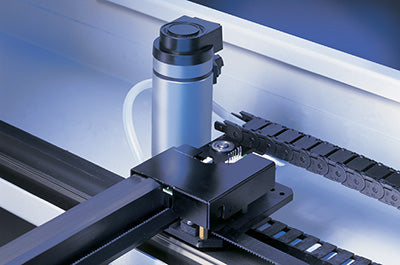

  • Motion System with DC Servo Motor

    The LaserPro X252 utilizes a high speed closed-loop DC servo motor for precise and fast carriage movement to ensure exceptionally accurate cutting outputs.

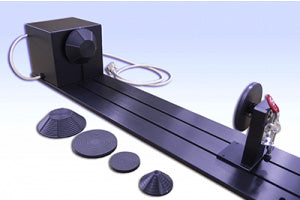

  • Rotary Attachment(Optional)

    By using the rotary attachment, laser engraving on cylindrical or round objects is now possible. This option uses the fourth axis to rotate your object 360° to allow engraving on cups, wine glasses or even a baseball with two types of conical fixtures available. The minimum/maximum diameter and length of the working object are 90/180mm and 450mm respectively. Its maximum weight should not exceed 4kgs.

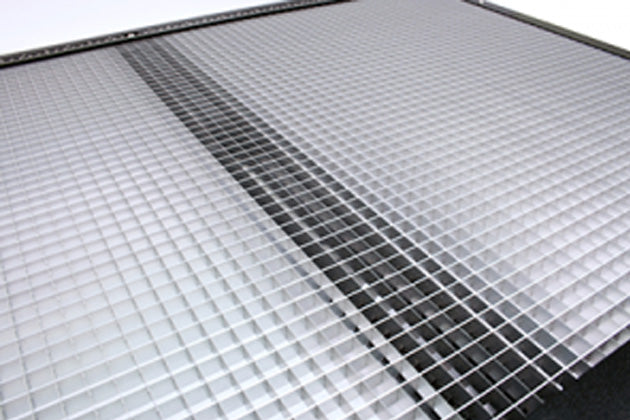

  • Honeycomb Table

    A clean and better cutting quality is achieved by the honeycomb table when cutting materials into small pieces. It lifts the workpiece off the work table from hitting by laser reflection. The dust and vapor created during processing are then taken away effectively through the honeycomb cell by a down vacuum funnel exhaust. Rather than handling rigid materials, the honeycomb table also helps to fix flexible materials with the aid of down vacuum to keep constant focus distance and consistent cutting results.

1 3

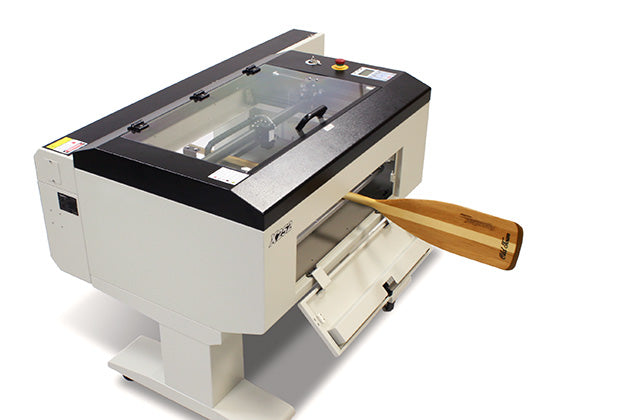

  • Pass-through Front to Rear Doors (Optional)

    A design with doors on both ends to accommodate extremely long working pieces, front door without the need for a screwdriver.

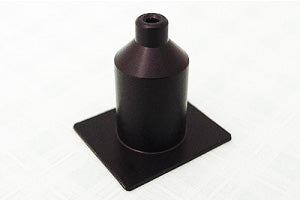

  • SmartAIR™ Fine Nozzle

    The optional SmartAIR Fine Nozzle is recommended for laser engraving or cutting thin materials such as textile. The smaller caliber nozzle is positioned closer to the object for a concentrated blast directed over a small area to eliminate burning on the cutting edge. The perfectly-vertical design of the SmartAIR Fine Nozzle produces a concentrated airflow to blow away dust and unwanted residue, leaving a clean product surface.

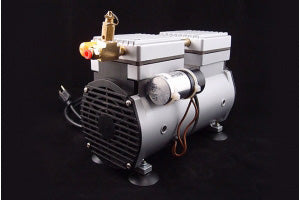

  • 配備空氣壓縮機

    特殊設計的用於鐳射雕刻機的空氣壓縮機，通過使用無油膜片，有助於消除鐳射光學元件上的水分對環境造成的有害和破壞性影響。此外，還提供需要吹走汽化顆粒的最佳氣壓，有助於防止過熱。必須保持聚焦鏡和反射鏡的清潔，以延長鐳射機壽命。

1 3

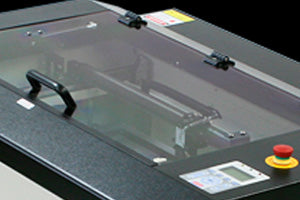

  • 鐳射護目窗蓋

    可防護波長達OD7 + @ 10,600nm的鐳射及強光，防止對眼睛的傷害。

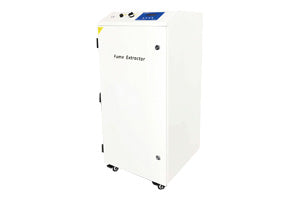

  • 吸氣除臭裝置(選購)

    可配合選購CE認證的吸氣除臭裝置，旨在去除鐳射加工過程中的有害煙霧和粉塵，保護操作者的健康，消除環境污染，增強激光切割效果。

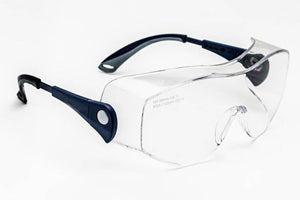

  • 鐳射專用護目鏡(選購)

    可配合選購護目鏡，可防護波長達OD7 + @ 10,600nm的鐳射及強光，防止對眼睛的傷害。

1 3

High security design, safe to use

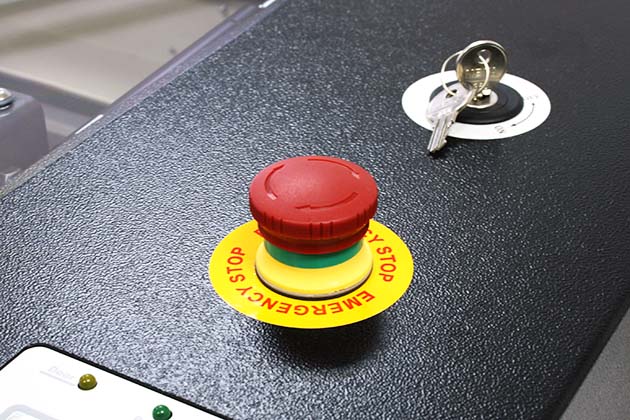

  • 鑰匙開關及緊急按鈕

    鑰匙開關保護機器以免非授權使用。機器頂部顯眼的緊急制動按鈕可用於立即停止鐳射發射及筆車運行，確保操作環境更加安全。

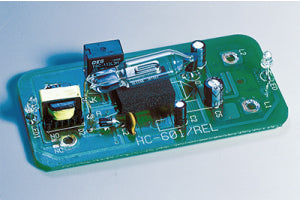

  • SmartGUARD™ 火焰偵測器 (專利)(選購)

    使用SmartGUARD系統的鐳射切割和雕刻機，可確保最佳的安全性。發生故障時，警報系統將立即啟動並關閉作業系統。

  • RoHS 認證

    作為市場的先導者和環保型的生產商，GCC將不遺餘力保護全球環境。產品符合歐盟2002/95/EC、RoHS認證。

1 3

Technical Specifications

Technical Specifications

Wattage: 80W / 100W
Laser source: sealed CO2 laser
Cooling method: water cooling
Working area: 25 in. x18 in. (635 x 458 mm)

Maximum workpiece size (L x W x H)
Front and rear doors closed: 27 x 19 x 6.5 in. (685 x 482 x 165 mm)
Front and rear door opening: 27 x ∞ x 6.5 in. (685 x ∞ x 165 mm)
Worksurface: 31.1 x 20.9 in. (790 x 530 mm)
Dimensions: 64.9 x 36.6 x 40.9 in. (1650 x 930 x 1040mm)
Drive mode: Closed DC servo control
Maximum Speed*: 40 IPS
Speed ​​control: adjustable within the range of 0~100% (16 different speeds can be set for each job)
Power control: adjustable within the range of 0~100% (each job can set the power corresponding to 16 different colors)
Distance accuracy: 0.254mm or 0.1% of the moving distance, whichever is larger
Resolution (DPI): 125, 250, 500, 1000
Z axis movement: automatic adjustment
Focusing lens: standard 2.0", optional 1.5", 3"
Transmission interface: 10 Base-T Ethernet, USB 2.0 full speed
Memory: 32MB standard
Engraving ability: 256 gray scale image processing ability

safety:
Class I laser products complying with EN60825
CDRH-compliant class II laser products
Compliant with the EC Machinery Directive for laser products
Install the optional switchable door module, which meets the Class 4 laser of CDRH standard
product

equipment requirements
Voltage: 200-240 Volt AC
Power consumption: 1320W
Chiller: An external chiller is required
External exhaust system: the minimum air volume needs to reach 640m3/h (CFM 377 ft3/h), and the negative pressure needs to reach 2.3kPA
