Bravoprodigy

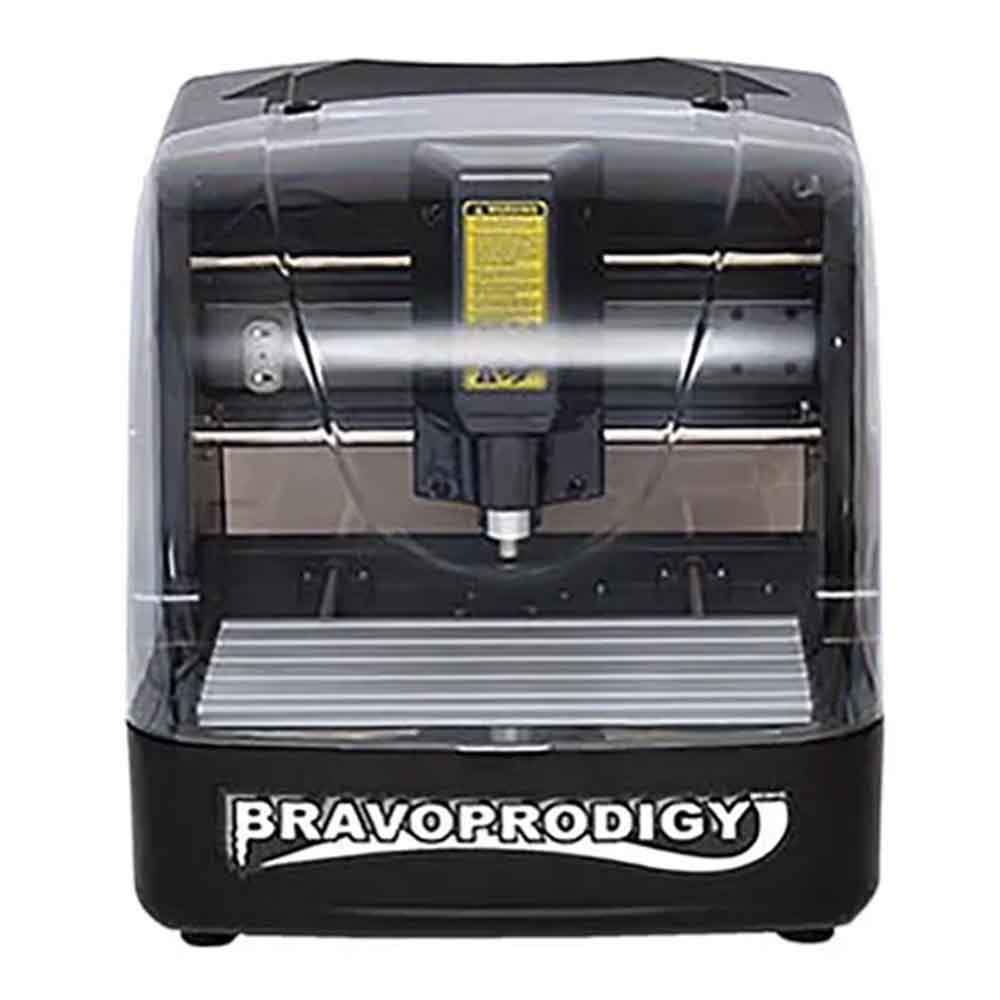

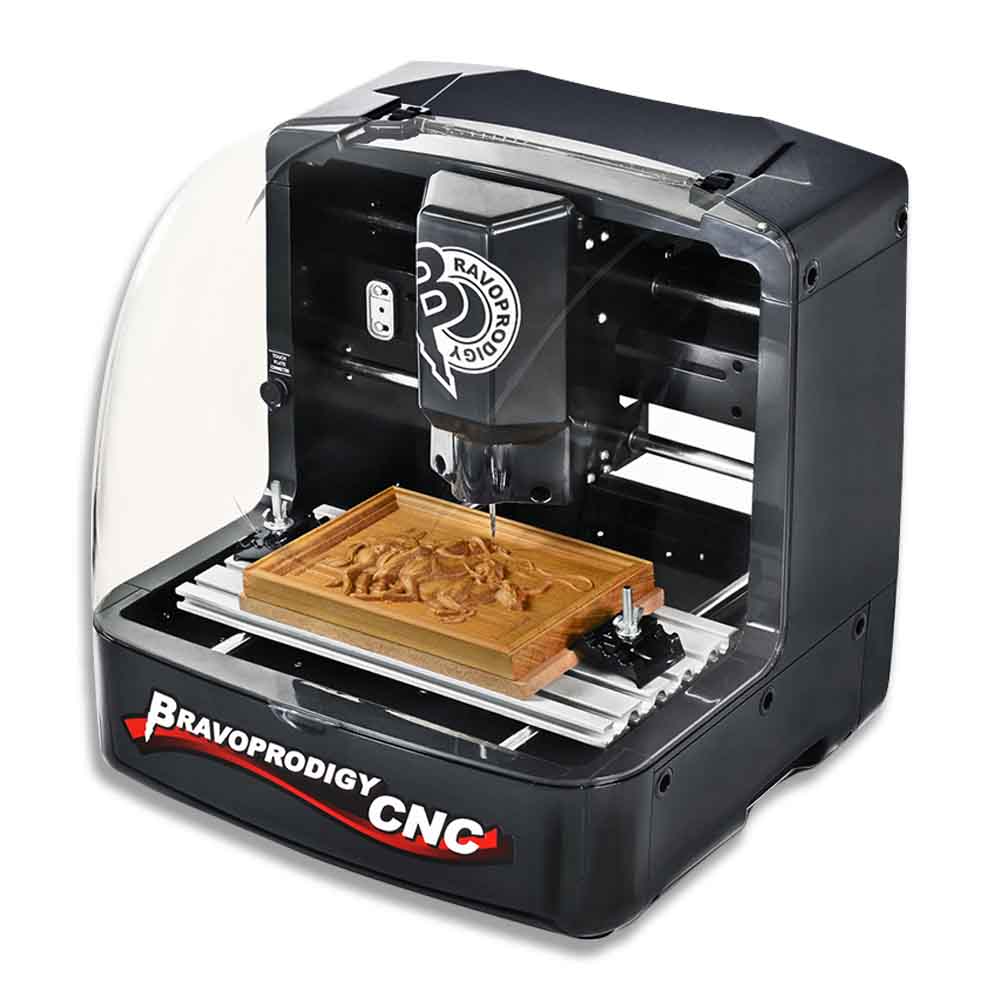

Mini desktop CNC engraving machine

BE2216

BE2216

HK$21,500.00
HK$21,500.00
Sale Sold out
Shipping calculated at checkout.

It is suitable for use in conjunction with STEM courses in middle and primary schools.

The BravoProdigy BE2216 has a slim body and can meet small engraving and cutting needs!

Can be applied to woodworking engraving, metal engraving and cutting

Shipping / Pre-order Terms

Delivery terms

  • Over HK$1500, free delivery;
  • If the amount is less than HK$1500, an additional local standard delivery fee of HK$150 is required;
  • Or SF Express (pay by freight)

Pre-order terms

  • It will take about 2-4 weeks for the pre-order to arrive. It is for reference only, and the actual situation depends on the shipment and transportation situation.
  • After the pre-ordered goods arrive, we will notify the customer of the arrival for arrange the payment of the final amount. We will arrange the delivery once the payment confirmed.
  • After the payment is confirmed for all reservations, no cancellation or refund application will be accepted.

One year warranty

Starting from the invoice date, a one-year warranty is provided.

⚠️The following are not included in the maintenance service:

3D printer: extruder and clogged nozzles.

UV printing printer: printheads and clogged nozzles.

Inquiry / Quotation

View full details

Features

  • 機身細小，功能齊備

    1. 主軸採用DC無刷(BLDC)馬達:尺寸小、重量輕、高效率、溫升低、無碳刷摩擦、無需碳刷保養， 附有過負載、過熱、電壓…等保護，且馬達壽命長。

    2. 附有LED 照明燈，方便察看雕刻作業亦具有科技感。

  • 軟體相容性高

    1.控制驅動軟體相容性高，可支援其他廠牌的CAM 軟體。
    2.可記錄最後10 筆雕刻記錄 ( 含檔名、雕刻速度、主軸轉速、雕刻時間。) ， 更可查詢主軸運轉時間，供使用者參考。
    3.可手動控制三軸動作，搭配運轉主軸進行手動加工。
    4. 主軸可依不同素材的特性調整至適當的轉速，進行最好的雕刻切削。

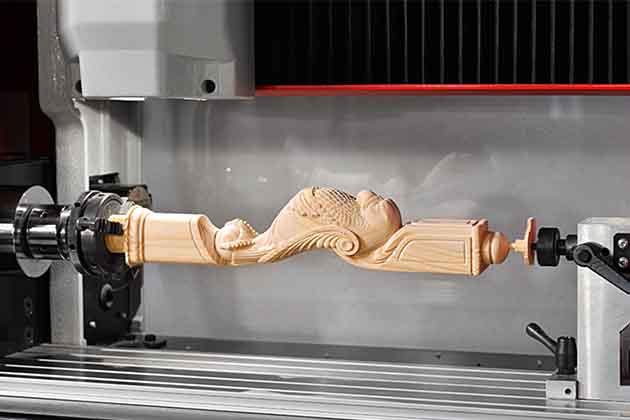

    5. 軟體裡的便利性設計，只需輸入圓柱直徑尺寸，程式便自動計算並運用在實機雕刻上。

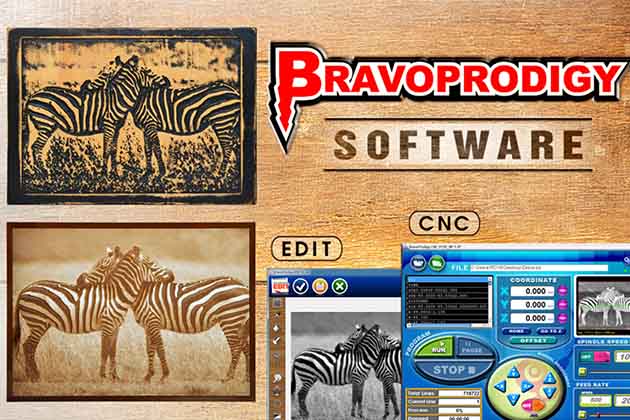

  • 配搭專屬軟體

    1. 隨機附有Bravoprodigy專屬EDIT雕刻轉檔軟體 與 CNC控制軟體。

    2. CNC 軟體操作介面活潑，簡單易學，雕刻進行中可即時預覽與變更操作，可透過滑鼠、鍵盤、手持控制器來操作機器，只需透過USB傳輸連線，快速完成加工動作。

1 3

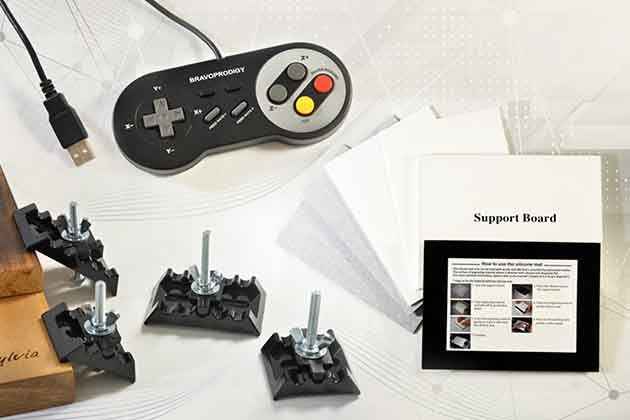

  • 可調整配件

    1. 附有可調整高度的夾具(齒型壓板)。
    2. 附有重覆使用的矽膠墊，易於做壓克力、ABS照片雕刻等等。
    3. 附有手持控制器當在架設工作原點 移動三軸時更方便操作。
    4. 機器通訊方式使用USB傳輸線，能方便且快速的連接電腦。

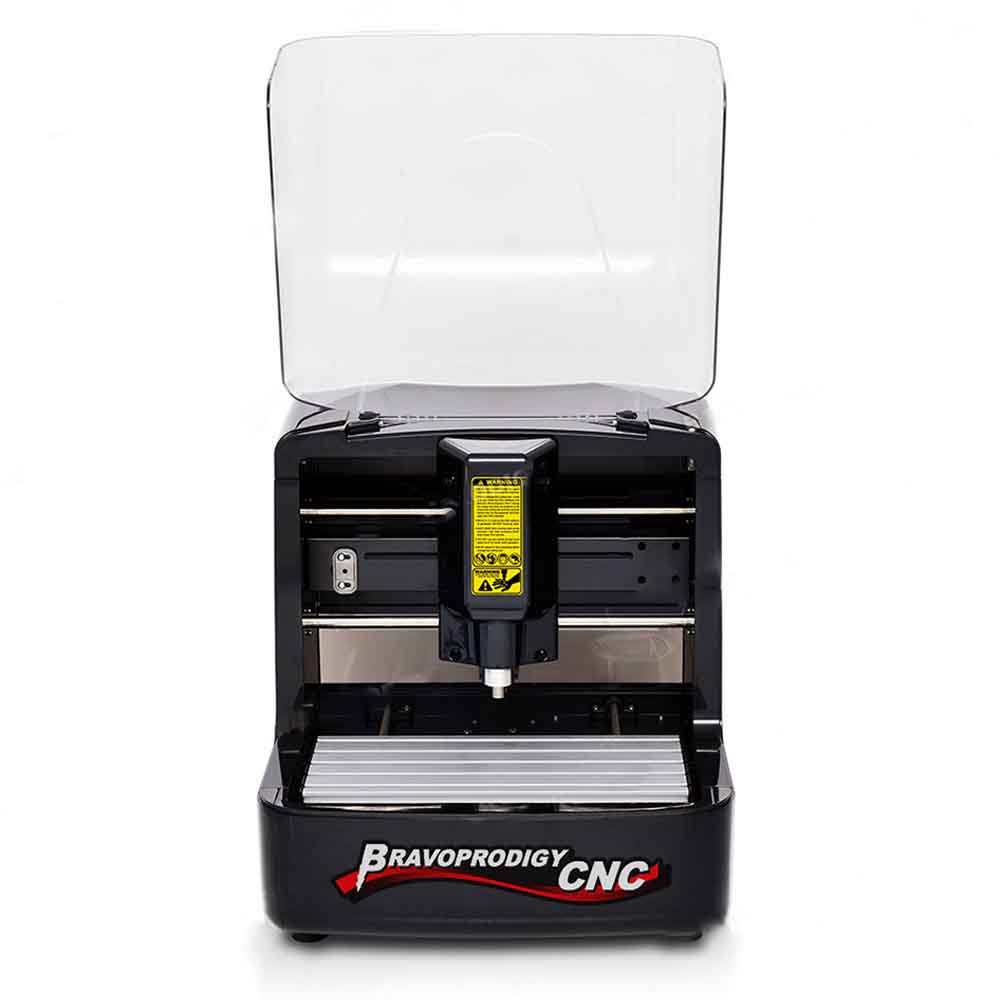

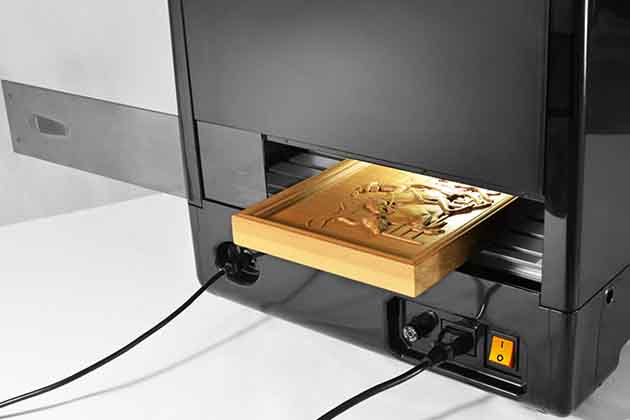

  • 活動式的後罩板

    1. 活動式的後罩板，亦於方便清潔&置放素材。
    2. 全罩式安全防護外罩可減少粉塵和噪音。
    3. 模組化功能易於維修與保養。
    4. 所有電機與線路無外露，隱藏於機台裡的設計使其兼具美觀與安全。
    5. 可選購ER11套筒式主軸，裝置微小徑刀具。

  • 振動筆模組

    適合在各式金屬吊飾、名牌等表面進行雕刻。例如：寵物名牌、鎖匙扣、飾物。
    適合材質: 黃銅、紅銅、金、銀、鋼鐵、不銹鋼、鋁、各種塑料。

1 3

        Technical Specifications

        Technical Specifications

        Model: BE2216
        Work platform size: X 320 mm x Y 150 mm (X 12.6 x Y 5.9 inches)
        Work plate can load: Max. 3kgs ( 6.61 lbs )
        Actual engraving Engraving range: X 220 mm x Y 160 mm x Z 63 mm (8.7 x 6.3 x 2.5 inches)
        Engraving speed: 2500 mm/min (98 inch/min)
        Restrictions on materials that can be engraved: plastic materials (ABS, acrylic), wood materials, foam cotton, Styrofoam, model wax, substitute wood, etc.
        Software resolution: 0.02 mm (0.001 inch)
        Mechanical resolution: 0.02 mm/step (0.001 inch/step)
        Spindle motor: 150W DC brushless motor
        Spindle Speed: Adjustable speed up to 20,000 RPM
        Tool diameter: 4 mm (0.16 inch)
        Transmission interface: USB 2.0
        Power supply: 200~240V 50/60HZ
        Output: DC24V 6.5A
        Power Consumption: 2.0 A
        Working noise: 39.6 db(A) in standby
        Working noise: less than 66 dB(A) in the unloaded operating state
        Dimensions: 390 x 400 x 425 mm (15.3 x 15.8 x 16.7 inches)
        Device Weight: 14.7kgs (32.4 lbs)
        Operating environment conditions: Temperature 5~40°C (41~104 °F)
        Humidity 35~80%
