GCC

Laser engraving and cutting machine

Spirit

Spirit

HK$0.00
HK$0.00
Sale Sold out
Shipping calculated at checkout.
This model is a pre-order item
If you are interested, please contact us for enquiry!
Tel: 26191183

GCC Spirit has perfect engraving quality and is one of the best selling models


Working area: 740 x 460 mm (29 x 18 in.)
Z-axis depth: 165 mm (6.5 in.)
Wattage: 12W~100W
Maximum cutting speed: 60 IPS

Shipping / Pre-order Terms

Delivery terms

  • Over HK$1500, free delivery;
  • If the amount is less than HK$1500, an additional local standard delivery fee of HK$150 is required;
  • Or SF Express (pay by freight)

Pre-order terms

  • It will take about 2-4 weeks for the pre-order to arrive. It is for reference only, and the actual situation depends on the shipment and transportation situation.
  • After the pre-ordered goods arrive, we will notify the customer of the arrival for arrange the payment of the final amount. We will arrange the delivery once the payment confirmed.
  • After the payment is confirmed for all reservations, no cancellation or refund application will be accepted.

One year warranty

Starting from the invoice date, a one-year warranty is provided.

⚠️The following are not included in the maintenance service:

3D printer: extruder and clogged nozzles.

UV printing printer: printheads and clogged nozzles.

Inquiry / Quotation

View full details

Features

Humanized design, easy to use

  • 任移即雕

    任移即雕功能大大簡化設置過程，讓用戶可直接將鐳射頭拖動至起始點，無須計算位置，大大簡化了複雜的輸出任務。

  • SmartPIN™ 智能對焦

    即插即用的探測器設置，可以讓焦點設置簡易完成，並且能在雷射雕刻過程中使品質達到最好。亦是最有效率的的對焦的工具，可以防止人為的錯誤。

  • 自動對中心功能

    内建式SmartCENTER™自動對中心功能可以幫助用戶輕鬆地自動定位任意形狀加工物件的中心點，極大地減少了繁瑣的設置時間。

1 3

Appearance and function design are fully equipped to meet various needs

  • 簡單易用的控制面板

    友好的控制面板簡化操作流程，熱鍵設計和工作狀態即時顯示簡潔明瞭，易於操作。

  • 精緻的3D雕刻

    GCC LaserPro集成了鐳射控制和圖像處理技術，創造了3D雕刻功能，鐳射系統將不同的鐳射光功率分配給圖像中的200個灰度級，使不同斜率的光譜3D效果。

  • 前後門可開設計 (選購)

    便利的前後門可開設計，無需借助任何工具即可容納超長型的工件。

1 3

  • Rotary Attachment(Optional)

    By using the rotary attachment, laser engraving on cylindrical or round objects is now possible. This option uses the fourth axis to rotate your object 360° to allow engraving on cups, wine glasses or even a baseball with two types of conical fixtures available. The minimum/maximum diameter and length of the working object are 90/180mm and 450mm respectively. Its maximum weight should not exceed 4kgs.

  • Honeycomb Table

    A clean and better cutting quality is achieved by the honeycomb table when cutting materials into small pieces. It lifts the workpiece off the work table from hitting by laser reflection. The dust and vapor created during processing are then taken away effectively through the honeycomb cell by a down vacuum funnel exhaust. Rather than handling rigid materials, the honeycomb table also helps to fix flexible materials with the aid of down vacuum to keep constant focus distance and consistent cutting results.

  • 配備空氣壓縮機

    特殊設計的用於鐳射雕刻機的空氣壓縮機，通過使用無油膜片，有助於消除鐳射光學元件上的水分對環境造成的有害和破壞性影響。此外，還提供需要吹走汽化顆粒的最佳氣壓，有助於防止過熱。必須保持聚焦鏡和反射鏡的清潔，以延長鐳射機壽命。

1 3

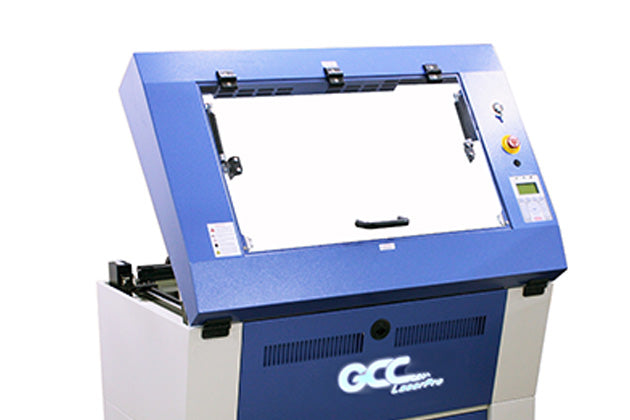

  • 鐳射護目窗蓋

    可防護波長達OD7 + @ 10,600nm的鐳射及強光，防止對眼睛的傷害。

  • 吸氣除臭裝置(選購)

    可配合選購CE認證的吸氣除臭裝置，旨在去除鐳射加工過程中的有害煙霧和粉塵，保護操作者的健康，消除環境污染，增強激光切割效果。

  • 鐳射專用護目鏡(選購)

    可配合選購護目鏡，可防護波長達OD7 + @ 10,600nm的鐳射及強光，防止對眼睛的傷害。

1 3

High security design, safe to use

  • RoHS 認證

    作為市場的先導者和環保型的生產商，GCC將不遺餘力保護全球環境。產品符合歐盟2002/95/EC、RoHS認證。

  • SmartGUARD™ 火焰偵測器 (專利)(選購)

    使用SmartGUARD系統的鐳射切割和雕刻機，可確保最佳的安全性。發生故障時，警報系統將立即啟動並關閉作業系統。

  • 鑰匙開關及緊急按鈕

    鑰匙開關保護機器以免非授權使用。機器頂部顯眼的緊急制動按鈕可用於立即停止鐳射發射及筆車運行，確保操作環境更加安全。

1 3

Technical Specifications

Technical Specifications

Working area: 640 mm x 460 mm (25 x 18 in.)
Expandable to 740 x 460 mm (29 x 18 in.)

Maximum workpiece size (L x W x H)
Front and rear doors closed: 762 x 482.6 x 165 mm (30 x 19 x 6.5 in.)
Front and rear door opening: 762 x ∞ x 165 mm (30 x ∞ x 6.5 in.)
Table size: 790 x 530 mm (31.1 x 20.9 in.)
Dimensions: 1125 x 720 x 1005 mm (44.3 x 28.3 x 39.6 in.)

Laser source:
12 to 100W 10.6-μm sealed CO2 laser/
20W & 60W 9.3-μm Hermetic CO2 Laser
Cooling method: air cooling, operating ambient temperature 15°- 30°C (60°- 86°F)

Drive mode: closed DC servo motor
Max Speed: 60 IPS**
Speed ​​control: adjustable within the range of 0.1~100% of 60 IPS (16 different speeds can be set for each job)
Power control: adjustable within the range of 0~100% (each job can set the power corresponding to 16 different colors)
Engraving ability: 256 gray scale image processing ability
Distance accuracy: 0.254mm or 0.1% of the moving distance, whichever is greater
Z axis movement: automatic adjustment
Focusing lens: standard 2.0", optional 1.5", 2.5" & 4.0"
Resolution (DPI): 125, 250, 300, 380, 500, 600, 760, 1000, 1500

Transmission interface:
10 Base-T Ethernet
USB Type-A 2.0 – for USB storage (up to 32GB capacity, FAT file system)
USB Type-B 2.0 – for connecting to a computer

Compatible Operating System: MS Windows
Control panel: LCD display panel: current file name, total working time, laser power, engraving speed, number of files uploaded to memory, parameter setting menu

safety:
Class I laser products complying with EN60825
CDRH-compliant class II laser products
2006/42/EC Machinery Directive compliance
Install the optional switchable door module, Class 4 laser products that meet the CDRH standard

Power Specifications:
200-240VAC, 50-60 Hz automatic switch to 80W and below 80W models, maximum 15A
External exhaust system: the minimum air volume needs to reach 640m3/h (CFM 377 ft3/h), and the negative pressure needs to reach 2.3kPA
